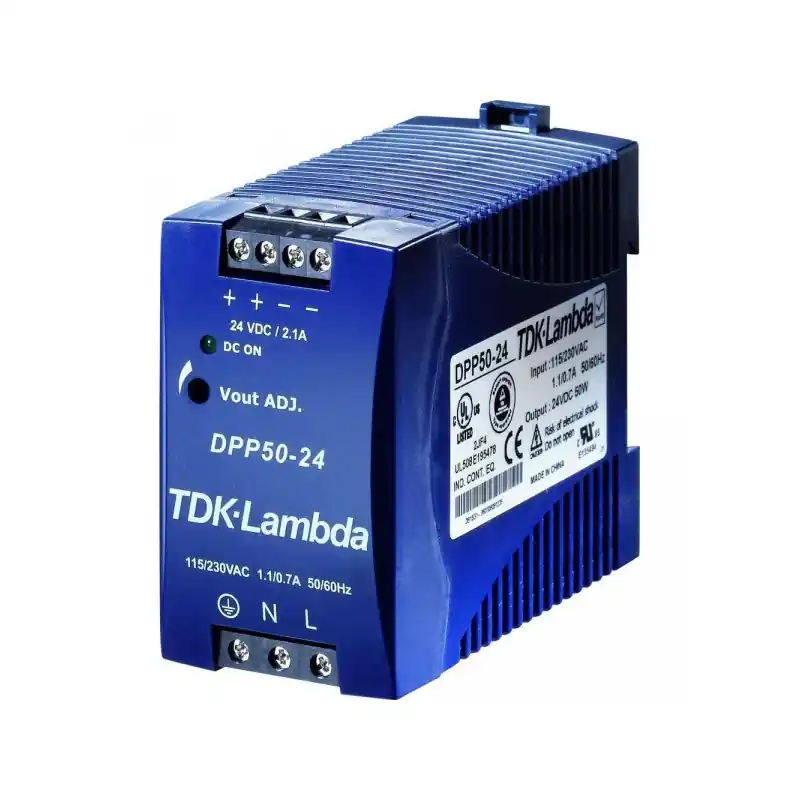

Spínaný síťový zdroj DPP-50-24 DIN Rail Power Supply 24Vdc 2.1A 50W, 1-Phase, PFC, TDK-Lambda
Popis:
Type: Switched Mode
Input voltage: 85 – 264 Vac / 90 – 375 Vdc
No. of outputs: 1 x
Phases: 1
Weight: 260 g
Width: 45 mm
Height: 75 mm
Power: 50 W
Category: Rail mounted PSU (DIN)
Output voltage (min.): 22.5 Vdc
Min. input voltage: 85 Vac
Max. output current: 2.1 A
Output voltage (max.): 28.5 Vdc
Connection: Screw terminal
Manufacturer part No.: DPP-50-24
Output voltage: 24 Vdc
Nominal input voltage: 115 V/AC, 230 V/AC, 90 – 375 V/DC
Type: DPP50-24
Max. temperature: 71 °C
MTBF: 273000 hrs
Max. input voltage: 264 Vac
Min. temperature: -25 °C
